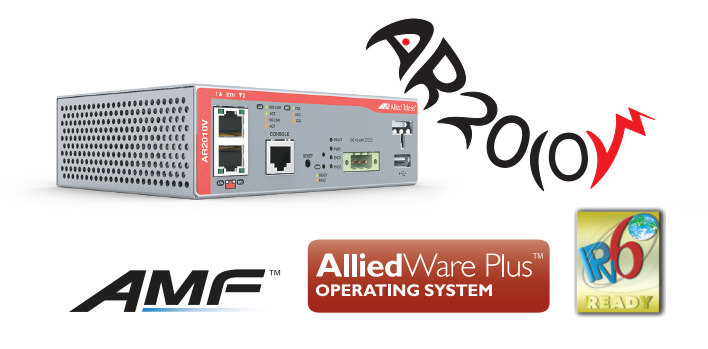

Allied Telesis AT-AR2010v



Allied Telesis Secure Virtual Private Network (VPN) Routers are the ideal secure gateway for modern network applications. Powerful VPN functionality is combined with comprehensive routing, to provide an innovative high performance solution that is easy to use and very secure.


The Allied Telesis AT-AR2010V is the ideal choice for applications that require reliable, high-capacity data transfer in demanding scenarios—including IP video surveillance, outdoor digital signage, kiosks, remote office VPN back-up, as well as critical Machine-to-Machine (M2M) telemetry in remote or mobile environments.

The AR2010V features comprehensive security and advanced networking capabilities, including connectivity over 3G/4G, to easily meet the high data transmission demands of today’s distributed infrastructure networks


• AlliedWare Plus™ feature-rich operating system

• 3/4G USB mode compatible

• Next-Generation DPI Firewall

• Application and web control

• Intrusion Detection / Prevention System (IDS/IPS)

• AMF compatible for easy installation and management


• Secure remote VPN access

• Site-to-site VPN connectivity

• Advanced routing capabilities

• Traffic shaping and prioritization

• Strong authentication

• Capable of running Allied Wireless LAN Controller (5 APs)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

High performance

By harnessing the power of multi-core processors and hardware acceleration engines, the AR2010V guarantees high performance, dramatically increases throughput, and enables sustained low latency traffic inspection. You can enjoy maximum throughput, while still protecting your important data and business information.

Flexible deployment

With its compact size, operation up to 50°C, and the ability to run on AC or DC power, the AR2010V is easy to deploy in all environments, including business, outdoor, surveillance, and M2M telemetry. A DIN rail mounting option supports industrial applications, and silent operation allows use in office spaces.

Secure Remote Virtual Private Networks (VPN)

The AR2010V supports IPSec site-to-site VPN connectivity, to ensure secure data retrieval from remote locations in distributed Smart City networks that connect multiple devices. This ensures up-to-the-minute information is available, despite long distances and a variety of connected devices, and enhances the quality and interactivity of urban services.

Comprehensive routing support

Strong security features are complemented by advanced routing capability. Full IPv6 routing and protocol implementation ensures today’s networks are fully connectable, both internally and externally, with other leading edge equipment. Powerful multicasting features support streaming video, ideal for modern surveillance solutions.

Easy to manage

The AR2010V runs the AlliedWare Plus™ fully featured operating system, with an industry standard CLI. The Graphical User Interface (GUI) provides a dashboard for monitoring, showing traffic throughput, security status, and application use at a glance. Configuration of security zones, networks and hosts, and rules to limit and manage traffic, provides a consistent approach to policy management.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Security processor800MHz dual-core
Memory (RAM)512MB
Memory (Flash)4GB
FirewallApplication-aware packet inspection firewall
Application proxiesFTP, TFTP, SIP
Threat protectionDoS attacks, fragmented & malformed packets, blended threats & more
IPsec site-to-site VPN tunnels 50
SSL VPN users 100
Encrypted VPNIPsec, SHA-1, SHA-256, SHA-512, IKEv2, SSL/TLS VPN
Encryption 3DES, AES-128, AES-192, AES-256
Key exchangeDiffie-Hellman groups 2, 5, 14, 15, 16, 18
Dynamic routed VPNRIP, OSPF, BGP, RIPng, OSPFv3, BGP4+
Point to pointStatic PPP, L2TPv2 virtual tunnels, L2TPv3 Ethernet pseudo-wires
Encapsulation GRE for IPv4 and IPv6
Logging & notificationsSyslog & Syslog v6, SNMPv2 & v3
User interfaces Scriptable industry-standard CLI, Web-based GUI
Secure managementSSHv1/v2, strong passwords
Management Allied Telesis Autonomous Management Framework (AMF)
User authentication RADIUS, TACACS+, internal user database
Command authorizationTACACS+ AAA (Authentication, Accounting and Authorization)
Routing (IPv4)Static, Dynamic (BGP4, OSPF, RIPv1/v2), source-based routing, VRF-Lite
Routing (IPv6) Static, Dynamic (BGP4+, OSPFv3, RIPng)
MulticastingIGMPv1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, PIMv6
Resiliency STP, RSTP
Traffic control8 priority queues, DiffServ, HTB scheduling, RED curves
Quality of Service (QoS)Premarking and remarking, taildrop queue congestion, strict priority, weighted round robin or mixed scheduling
IP address managementStatic v4/v6, DHCP v4/v6 (server, relay, client), PPPoE
NAT Static, IPsec traversal, Dynamic NAPT
Rated input voltageDC12-24V AC100-240V (with AC adapter)
Max power consumption13 watts
LAN port1 x 10/100/1000 RJ-45
WAN port1 x 10/100/1000T RJ-45
Other ports1 x USB, 1 x RJ-45 console
Product dimensions (H x W x D)42.5 mm (1.67 in) x 140 mm (5.51 in) x 105 mm (4.13 in)
Packaged dimensions (H x W x D)82 mm (3.237 in) x 215 mm (8.46 in) x 263 mm (11.35 in)
Product weight556 grams (1.2 lb) unpackaged, 1.2 kg (2.65 lb) packaged
FanlessSilent operation
Operating temperature range
Storage temperature range
Operating relative humidity range5% to 80% non-condensing
Operating altitude2,000 meters maximum (6,600 ft)
EMCEN55022 class A, FCC class A, VCCI class A
ImmunityEN55024, EN61000-3-levels 2 (Harmonics), and 3 (Flicker)
Safety StandardsUL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
Safety CertificationsUL, cUL, TuV
Reduction of Hazardous Substances (RoHS)EU RoHS6 compliant, China RoHS compliant
IPv6 ReadyPhase 2 (Gold) Logo
